Sun awning kit for stanchion 22/25/30 mm with telescopic tube 110 – 190 cm

Shade on board with our awning system

Our sun sail system is suitable for motor and sail boats.

Many boats have no sun protection and you are at the mercy of the sun, even in the harbor or anchoring at the sea.  We all would seek for some shade!

Even if the boats are equipped with a bimini, the same applies to the rear bench seat, or sun lounger at the bow. As the sun’s rays become more and more aggressive, sun protection is absolutely important.

With our flexible system we have the solution for all common sport boats and sailboats. The telescopic tube offers 6 different adjustment options and can be extended up to 190 cm.

We offer the sun sail system for boats with or without railing and also the sun sail in white or blue.

With railing:

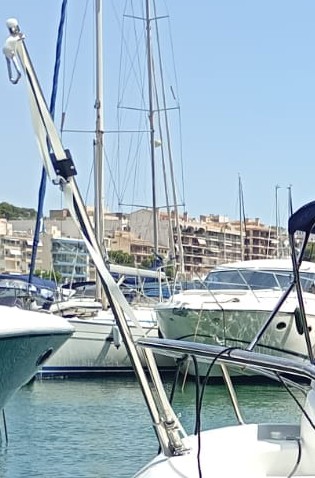

2 telescopic stainless steel tubes (length 110 cm – 190 cm / Ø 25 mm) with webbing, carabiner and 2 railing fasteners with quick release.

Art. No. 5300 for 22 mm railing
Art. No. 5301 for 25 mm railing
Art. No. 5302 for 30 mm railing

Without railing:
2 telescopic stainless steel tubes (length 110 cm – 190 cm / Ø 25 mm) with webbing, carabiner and sleeves (vertical or inclined) for installation on deck.

Art. No. 5305 deck socket vertical
Art. No. 5310 deck socket inclined ( 60°)

Not included in delivery

Sun awning according to the customer’s dimensions.

This can either be made by any saddler or sewing shop on site, or supplied by us accordingly with the customer’s measurements. To take exact measurements, the sun sail must first be installed.

Art. No. 5340 Awning white, rectangular, reinforced, price per m²
Art. No. 5341 Awning blue, rectangular, reinforced, price per m²

Application:

The brackets are screwed to a suitable railing support with the quick-release fasteners, then the pole is inserted and everything is ready to hang the awning. This is done very easily with the attached webbings and carabiners. (The sun sail can be custom made either by us or by your saddler).

The brackets, as well as the installation sleeves, come standard with plastic bushings to prevent the poles from making annoying noises.

Now you are protected from the sun and can fully enjoy your time on board.
